GeForce GTX 1060 Windforce OC 3G Graphics Card

• Refurbished Excellent > Very light scratches and light signs of use > Refurbished to the highest standards.

• Brown Box

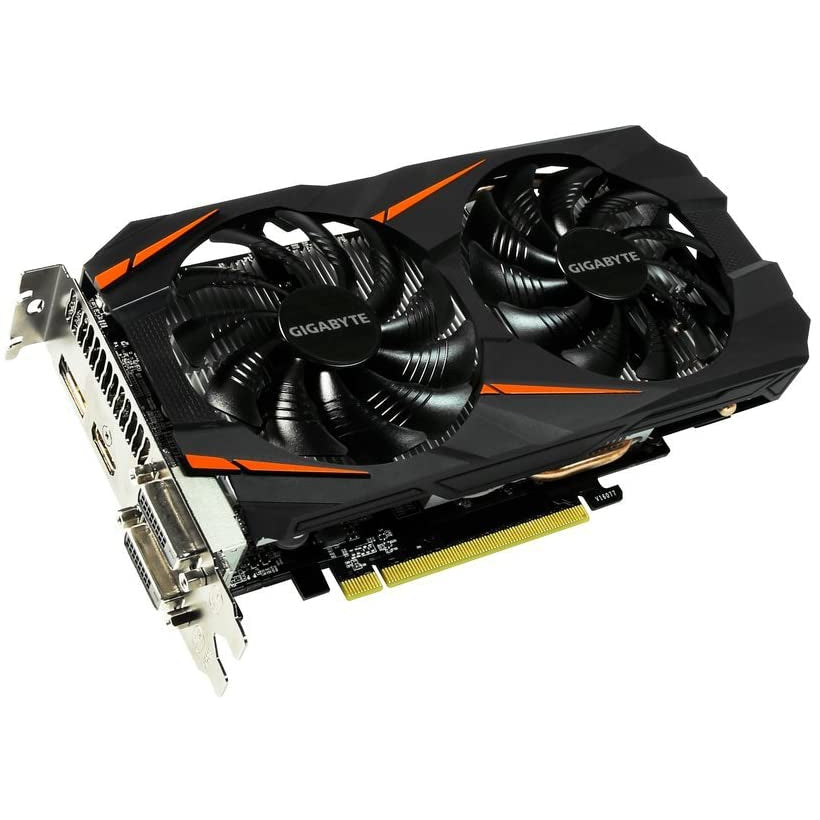

• GeForce® GTX 1060 WINDFORCE OC 3G Graphics Card

PRODUCT DESCRIPTION

The WINDFORCE 2X cooling system features two 90mm unique blade fans, alternate spinning fan design, pure copper composite heat-pipe, heat pipe direct touch technology, semi-passive 3D active fan, and protection back plate together delivering an effective heat dissipation capacity for higher performance at lower temperatures.

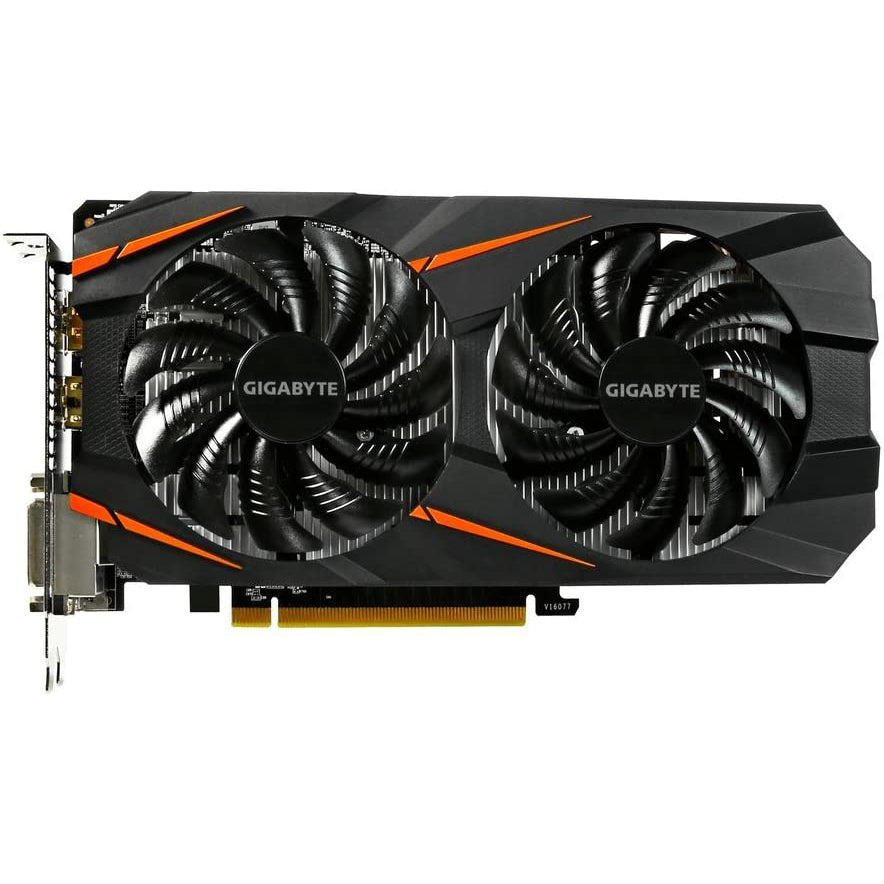

Alternate Spinning Fan Design

Optimize air flow by the alternate spinning fans that reduce air turbulence and effectively dissipate the heat.

90mm Unique Blade Fan Design

The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow.

3D Active Fan

The semi-passive fans will remain off when the GPU is under a set loading or temperature for low power gaming. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

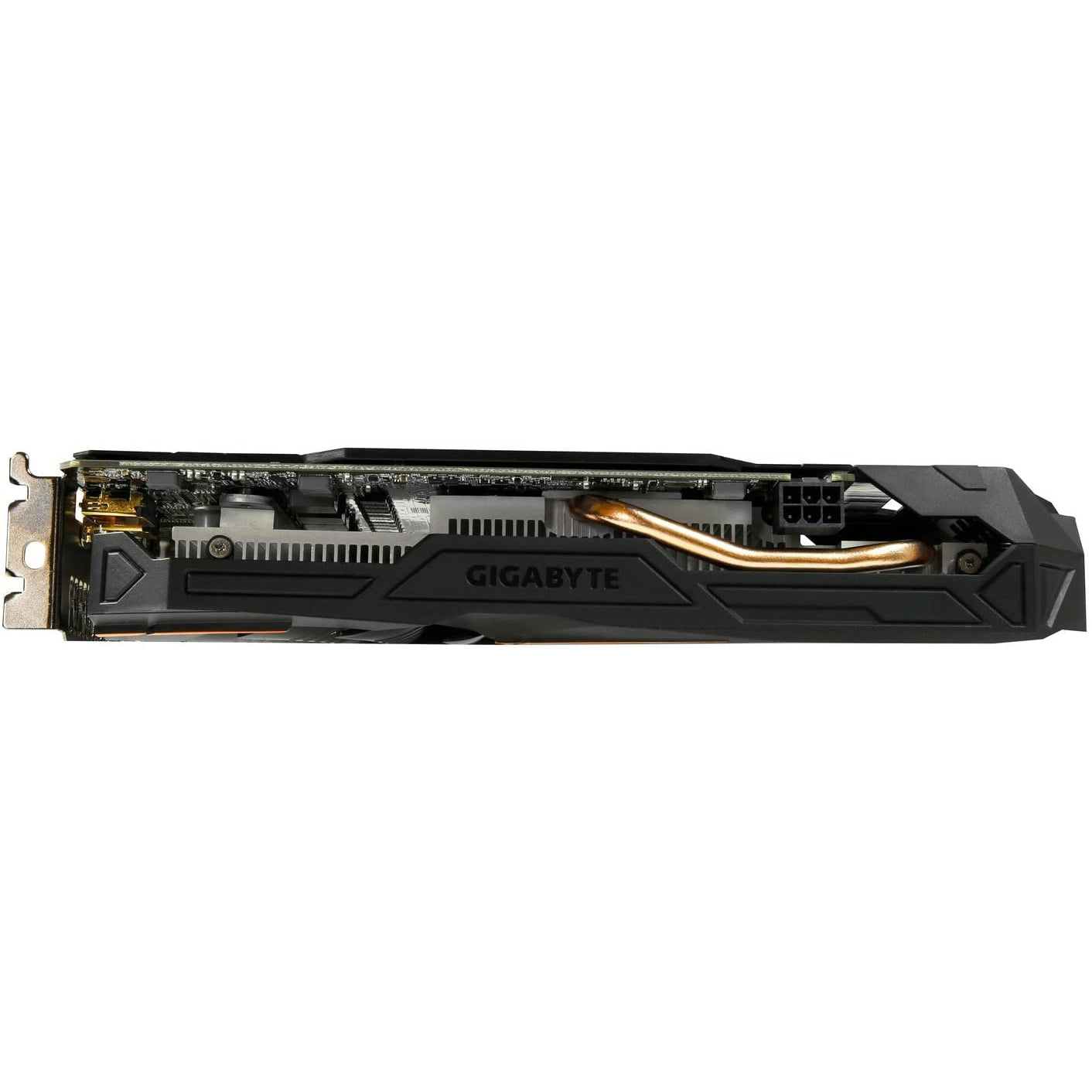

Composite heat-pipe

The composite heat-pipe combines both thermal conductivity and phase transition for efficiently managing the transfer of heat between two solid interfaces which increases 29% of cooling capacity.

Heat Pipe Direct Touch

The pure copper heat pipe is shaped to maximize the direct contact area to the GPU.

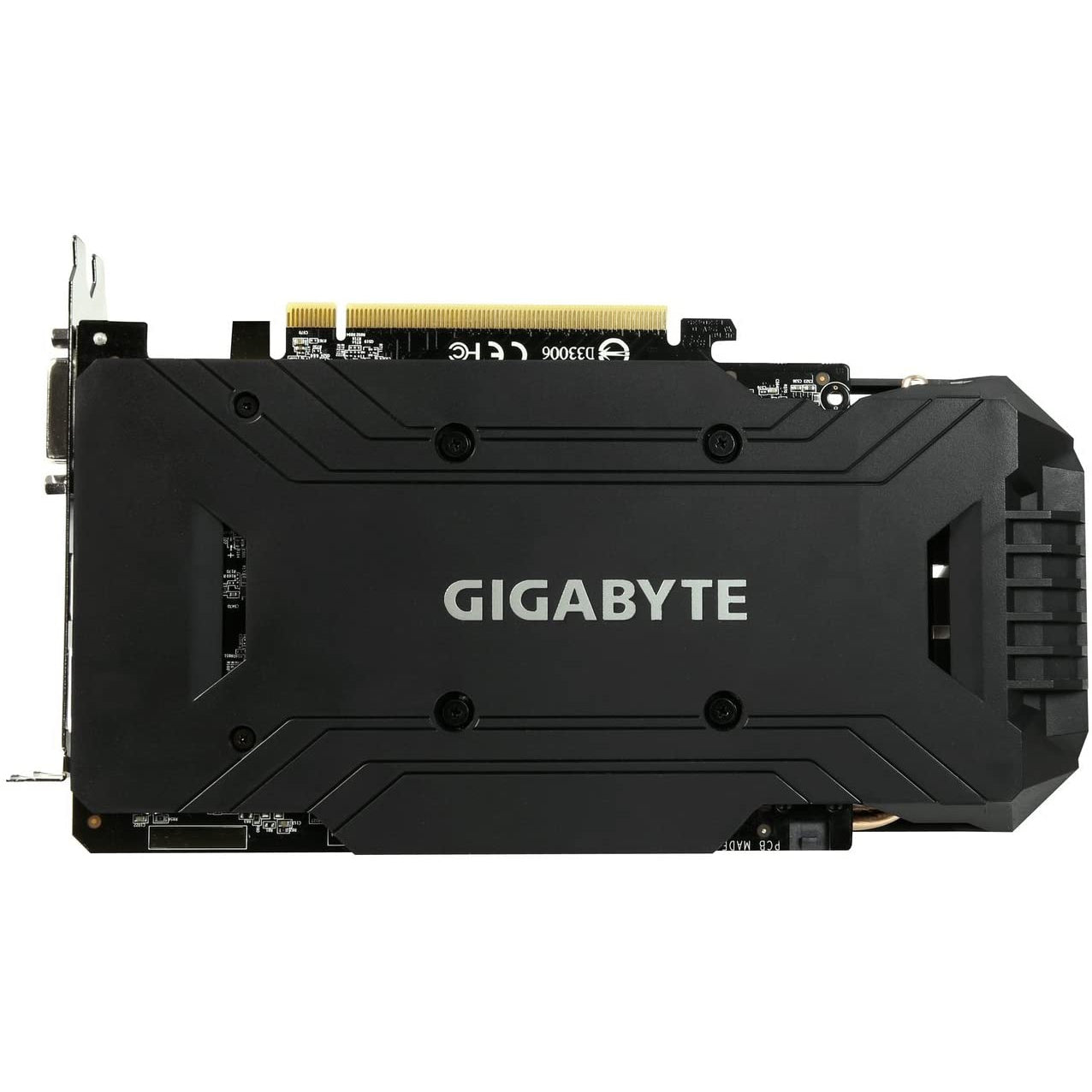

Protection back plate

Glorious black back plate provides the solid protection, strengthens the structure and inspires the passion for gaming.

PRODUCT INFORMATION

• Graphics Processing - GeForce® GTX 1060
• Core Clock - Boost: 1797 MHz / Base: 1582 MHz in OC mode
• Boost: 1771 MHz / Base: 1556 MHz in Gaming mode
• CUDA® Cores - 1152
• Process Technology - 16 nm
• Memory Clock - 8008 MHz
• Memory Size - 3 GB
• Memory Type - GDDR5
• Memory Bus - 192 bit
• Card Bus - PCI-E 3.0 x 16
• Digital max resolution - 7680x4320
• Multi-view - 4
• Card size - H=39 L=223 W=121 mm
• PCB Form - ATX
• DirectX - 12
• OpenGL - 4.5
• Recommended PSU - 400W
• Power Connectors - 6 pin*1

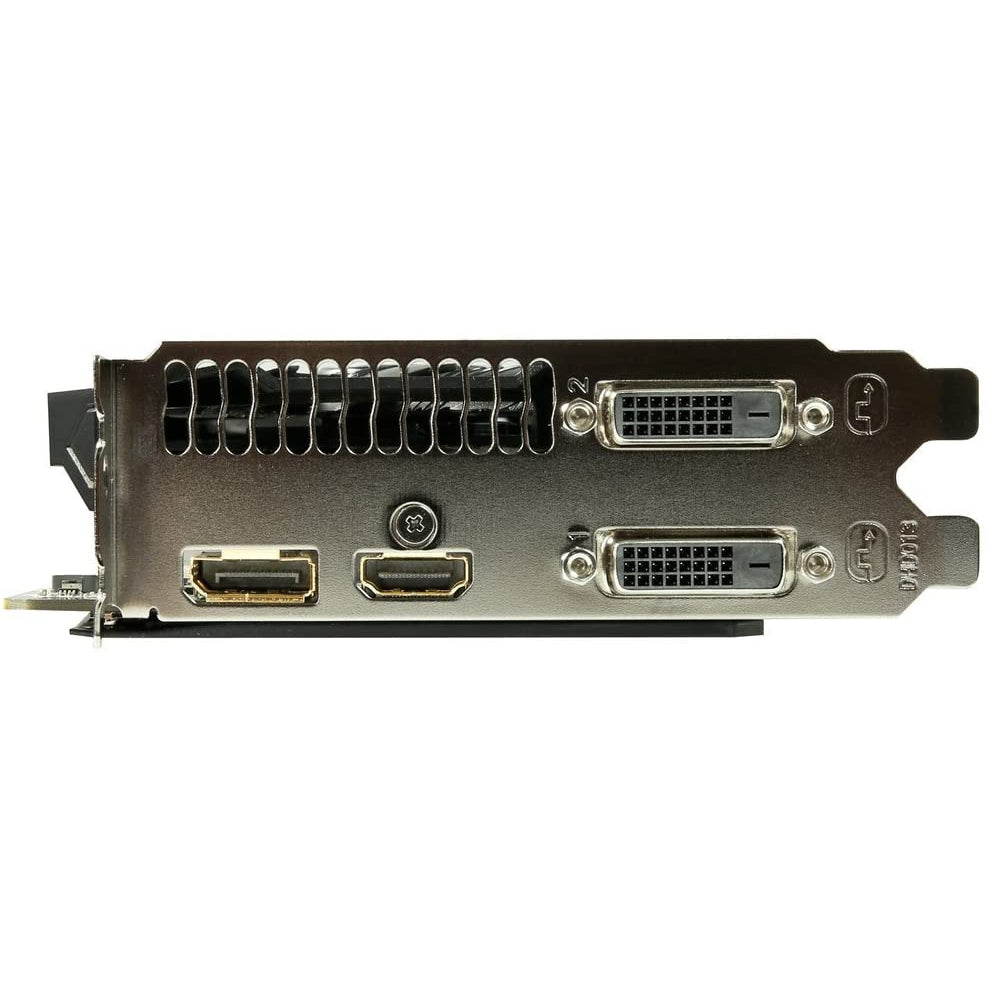

• Output - Dual-link DVI-D *2
• HDMI-2.0b*1 (Max Resolution: 4096x2160 @60 Hz)
• Display Port-1.4 *1 (Max Resolution: 7680x4320 @60 Hz)
